Direct-connect linear, 6×2 and 8×2
Round-duct connection without a register box. Rough-in guide for the 6×2 and 8×2 linear family.
Resources
Installation, clearly.
One-page guides and short videos, grouped the way the products are sold.
Installation videos
One-page guides (PDF)
Traditional HVAC
Direct-connect round
Round faces that connect to round duct. Removable-grille rough-in guide and video.
Installation video
Fixed plaster-in register/boot
Plaster-over faces for register or boot openings. Watch the installation video below.
Installation video
Removable register/boot
Magnetic removable grille on a plaster-in frame for register or boot openings. Watch the installation video below.
Installation video
High velocity
High-velocity floor
Linear floor outlet for high-velocity systems. Underside access is required; thickness and connection options are on the product.
Installation video
High-velocity 90-degree
Rough-in 90-degree high-velocity outlets. This guide distinguishes L6 mounting from R2, S2, and H2.
High-velocity straight
Straight rough-in high-velocity outlets.
Illustrative rendering · round removable model

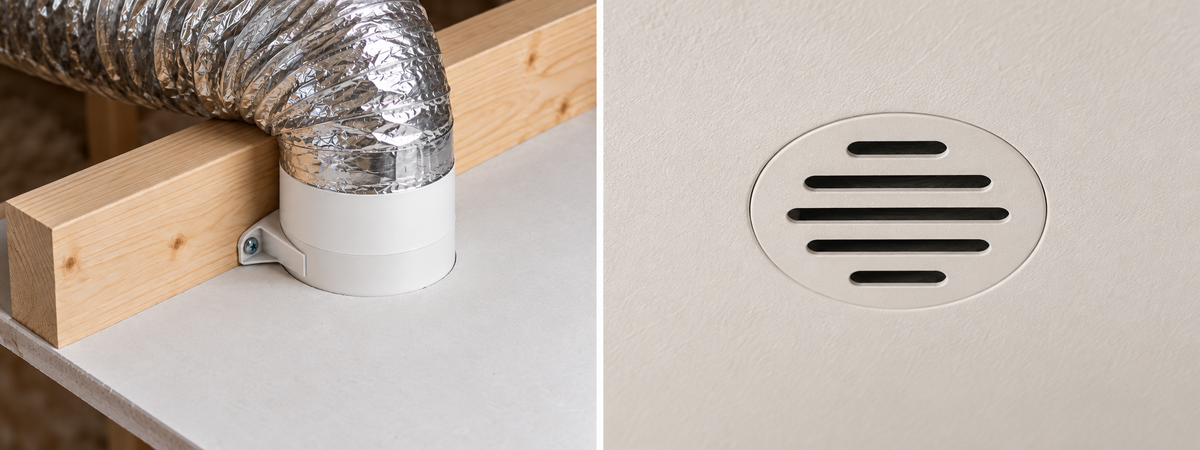

Round rough-in: above the ceiling and after finishing.
The body mounts behind the board. The plaster-in flange is buried in the finish; the removable face stays accessible.
Round removable guide

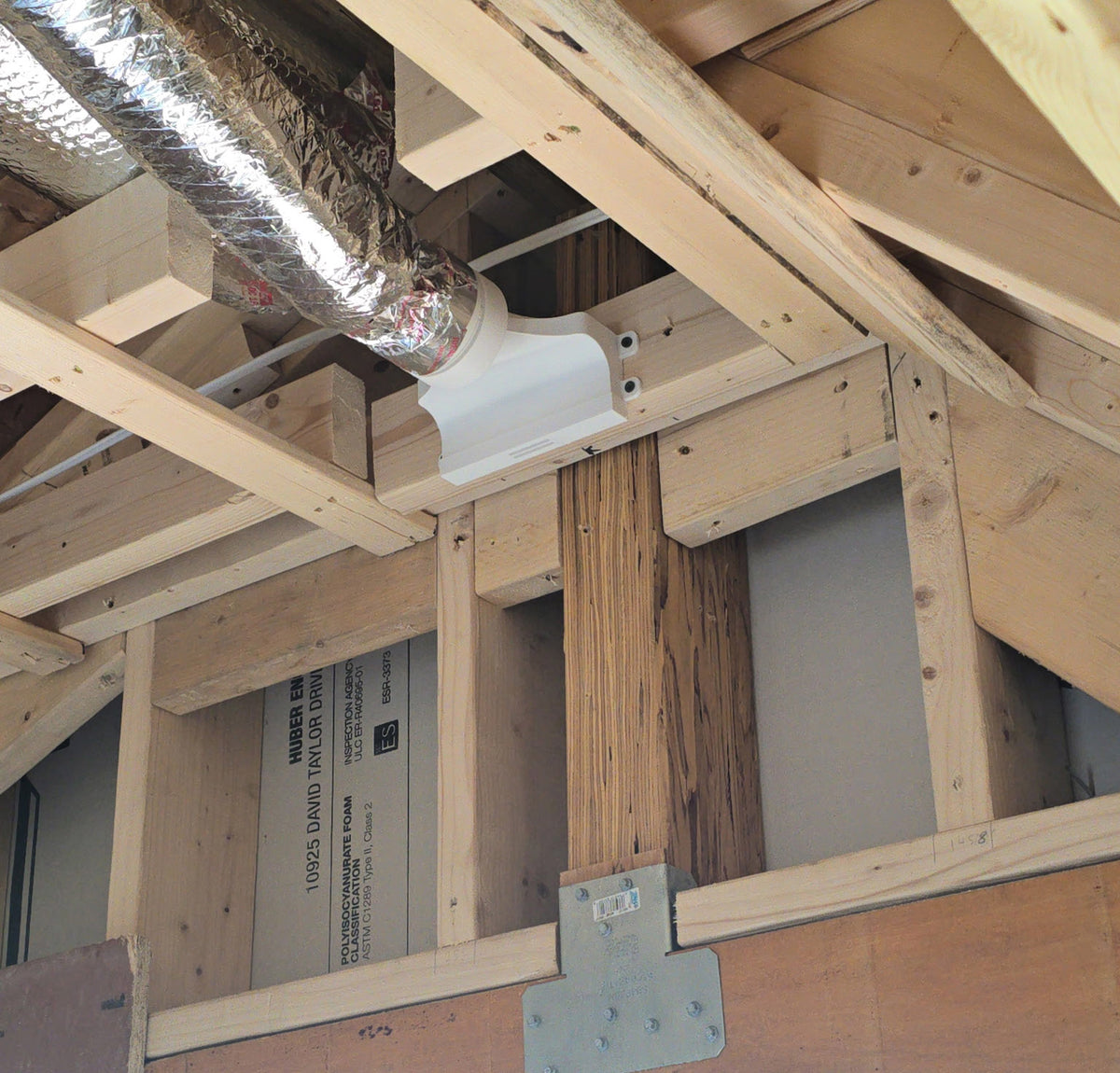

Installation photo + illustrative finished view · L6 90-degree model
L6 rough-in: behind the wall and after finishing.
Mounting and ductwork sit behind the finish. Only the narrow opening remains visible.

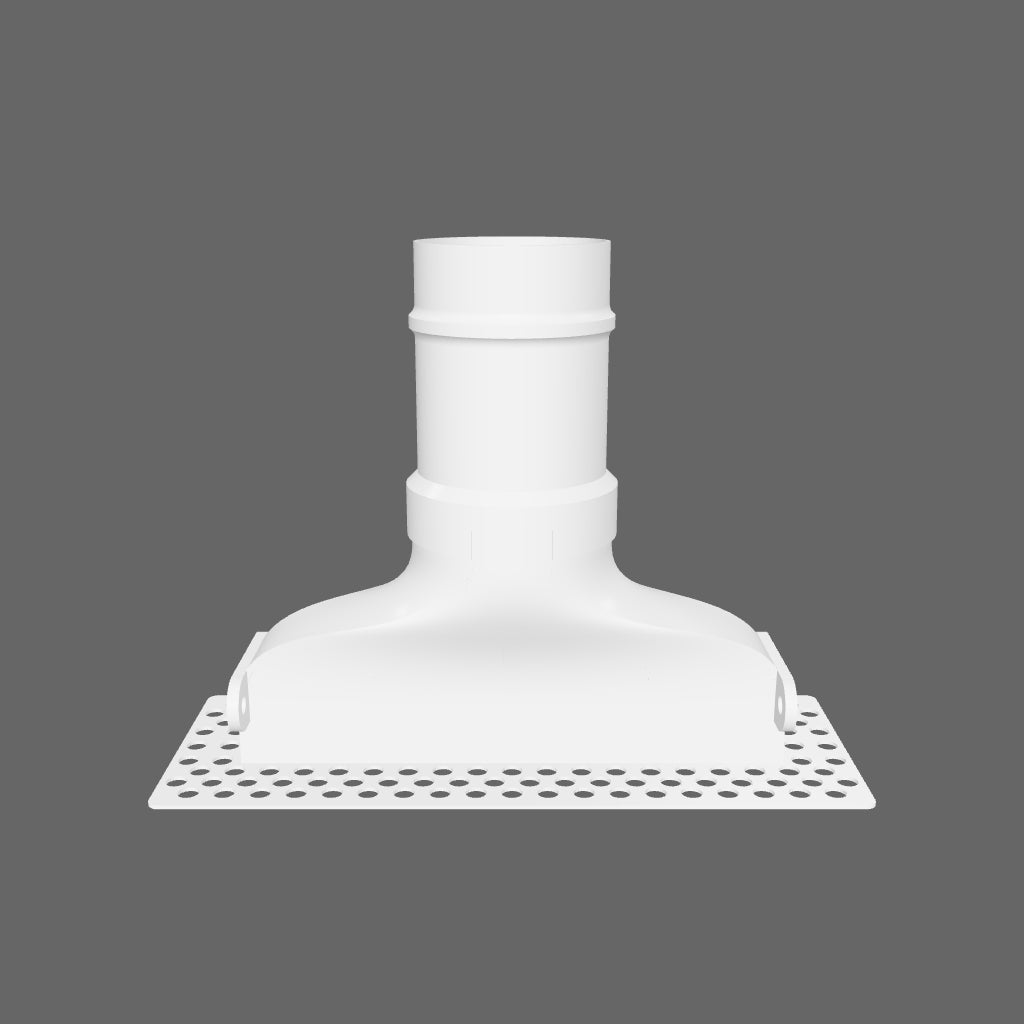

Open the 90-degree guideInspect the L6 straight rough-in in 3D

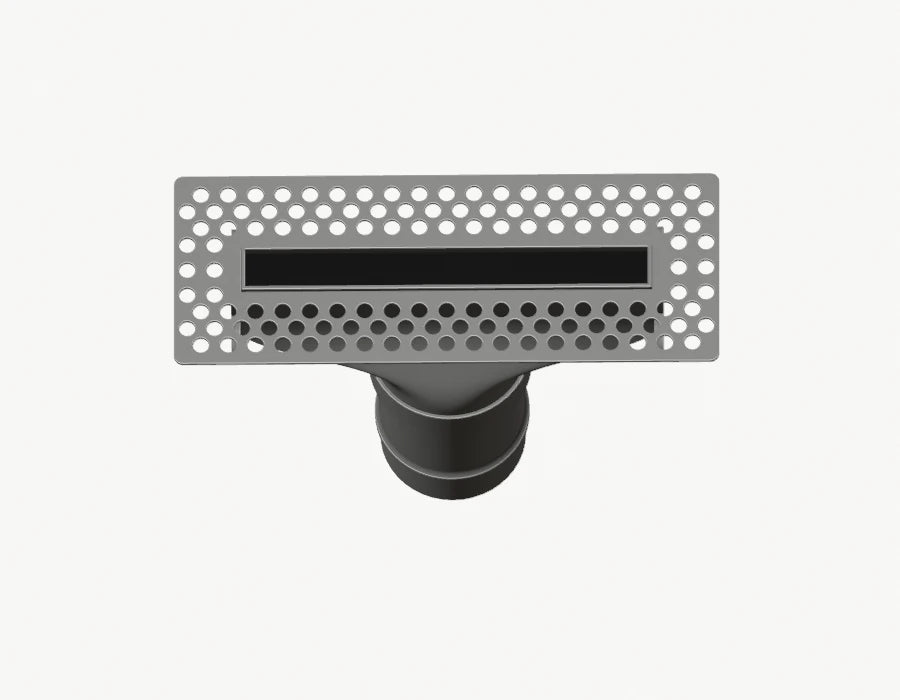

Rotate to see the straight 2-inch clamp rough-in body and connection. Use the guide for your selected configuration.
General installation tips
Plaster-in frames can be held flush to wall board prior to plastering using one of the following techniques:
- Cyanoacrylate (Super Glue) and activator spray
- Spray Adhesive (3M Recommended)
- Drywall screws
Use foil tape to seal all joints to ducting.
Where the selected model is intended to be painted, use a high-quality bonding primer. Follow its finish and lip-height instructions; keep airflow openings and removable seams clear.
Models with mounting holes (rough-in models) should be mounted with pan-head or cabinet screws.
